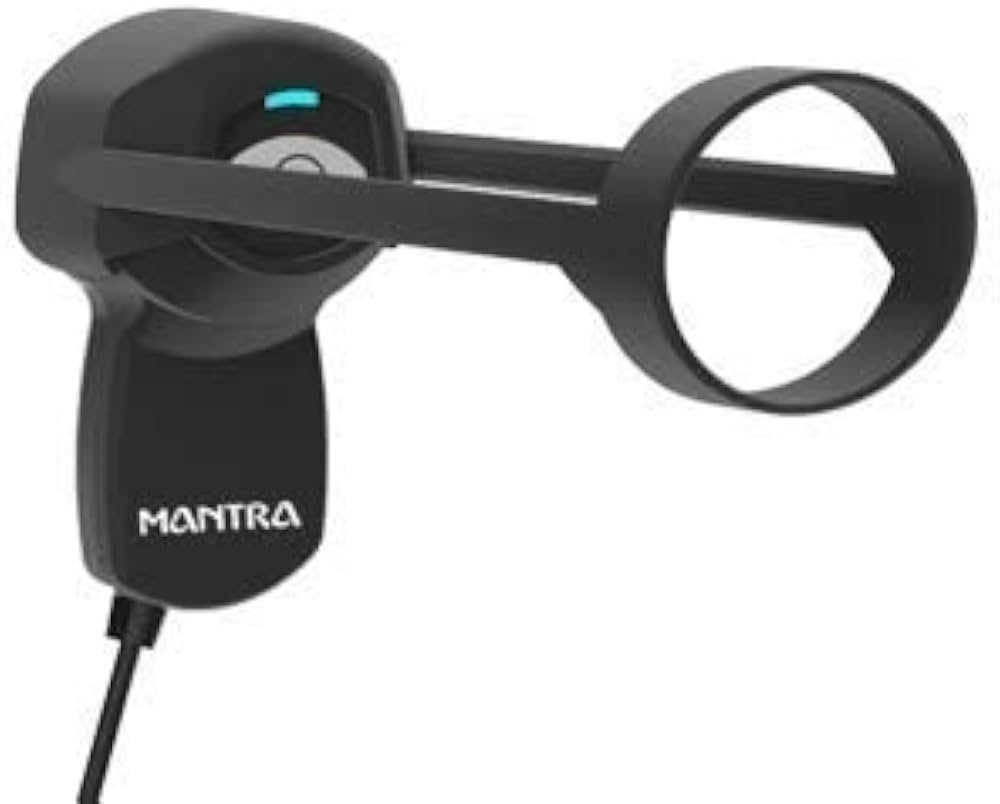

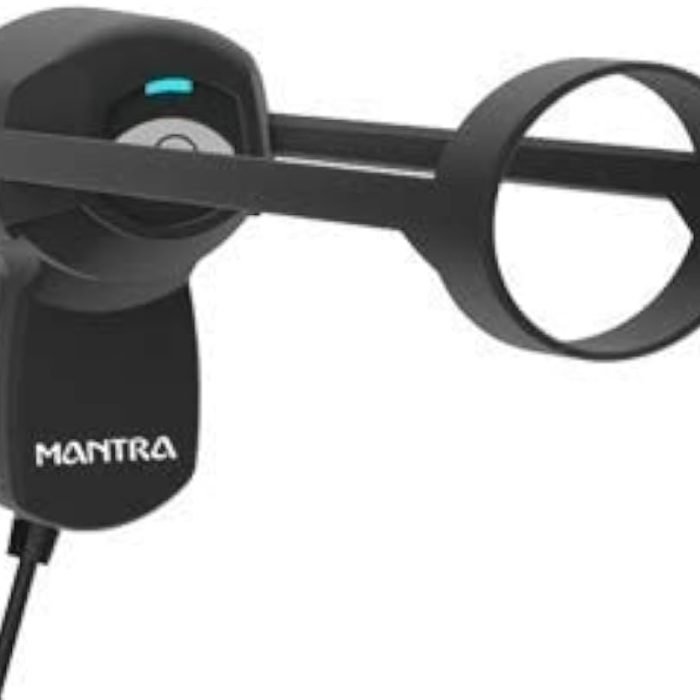

Mantra Single IRIS MIS100V2

Single IRIS Sensor MIS100V2 can be used extensively for identity applications like Aadhaar Authentication, Banking Applications and Access Control Applications. MIS100V2 quality algorithm can easily identify poor quality IRIS images and can be adjusted easily based on inbuilt LED indications. MIS100V2
works on proprietary distance sensing and focus analysis technology which gives it fast auto capture capabilities.

KEY HIGHLIGHTS

Accurate IRIS Recognition for Identity Programs

MIS100V2 leverages proprietary distance sensing and focus analysis for fast, accurate iris capture – delivering STQC-certified performance across government welfare, banking, and access control deployments.

Accurate IRIS Recognition for Identity Programs

MIS100V2 leverages proprietary distance sensing and focus analysis for fast, accurate iris capture – delivering STQC-certified performance across government welfare, banking, and access control deployments.

Plug and Play | Cross-Platform

USB 2.0 Interface

Plug-and-play USB 2.0 interface with supports/drivers for Windows XP, Win7, Win2008, Android, Linux, and Embedded Linux – making MIS100V2 compatible with existing IT infrastructure without hardware upgrades.

IEC 62471 | FCC | RoHS

ESD & EMC Protected

ESD protection to  8KV air discharge and  4KV contact discharge. FCC Part 15B / CISPR 22 Class B radiated emission compliance and IEC/EN 61000-4-3 immunity. RoHS compliant and IEC 62471 safety exempt group rating.

UIDAI | Jeevan Pramaan | NREGA | PDS

Lowest FAR & FRR

Delivers exceptionally low False Acceptance Rate (FAR) and False Rejection Rate (FRR) for high-accuracy iris recognition. Widely deployed across India’s demanding biometric programs such as Aadhaar authentication, AEBAS, Jeevan Pramaan, NREGA, and PDS.

ISO/IEC 19794-6 | JPEG2000

STQC Certified Product

MIS100V2 is an STQC-certified high-resolution CMOS iris sensor outputting ISO/IEC 19794-6 compliant JPEG2000 compressed images (KIND1 to KIND7). The proprietary quality algorithm easily identifies poor-quality iris images before capture, ensuring scans meet the highest quality standards.

Proprietary Distance Sensing

IRIS Auto Capture

MIS100V2 works on proprietary distance sensing and focus analysis technology which gives it fast auto capture capabilities – capturing a compliant iris image in under 2 seconds with built-in quality checking.

NIR | 8-Bit Pixel Depth

700-900 nm Imaging Wavelength

Near-infrared imaging at 700-900 nm captures iris texture invisible to the naked eye – providing consistent, high-contrast images regardless of iris colour. 8 bits/pixel depth and >10 pixels/mm resolution ensure accurate pattern matching.
