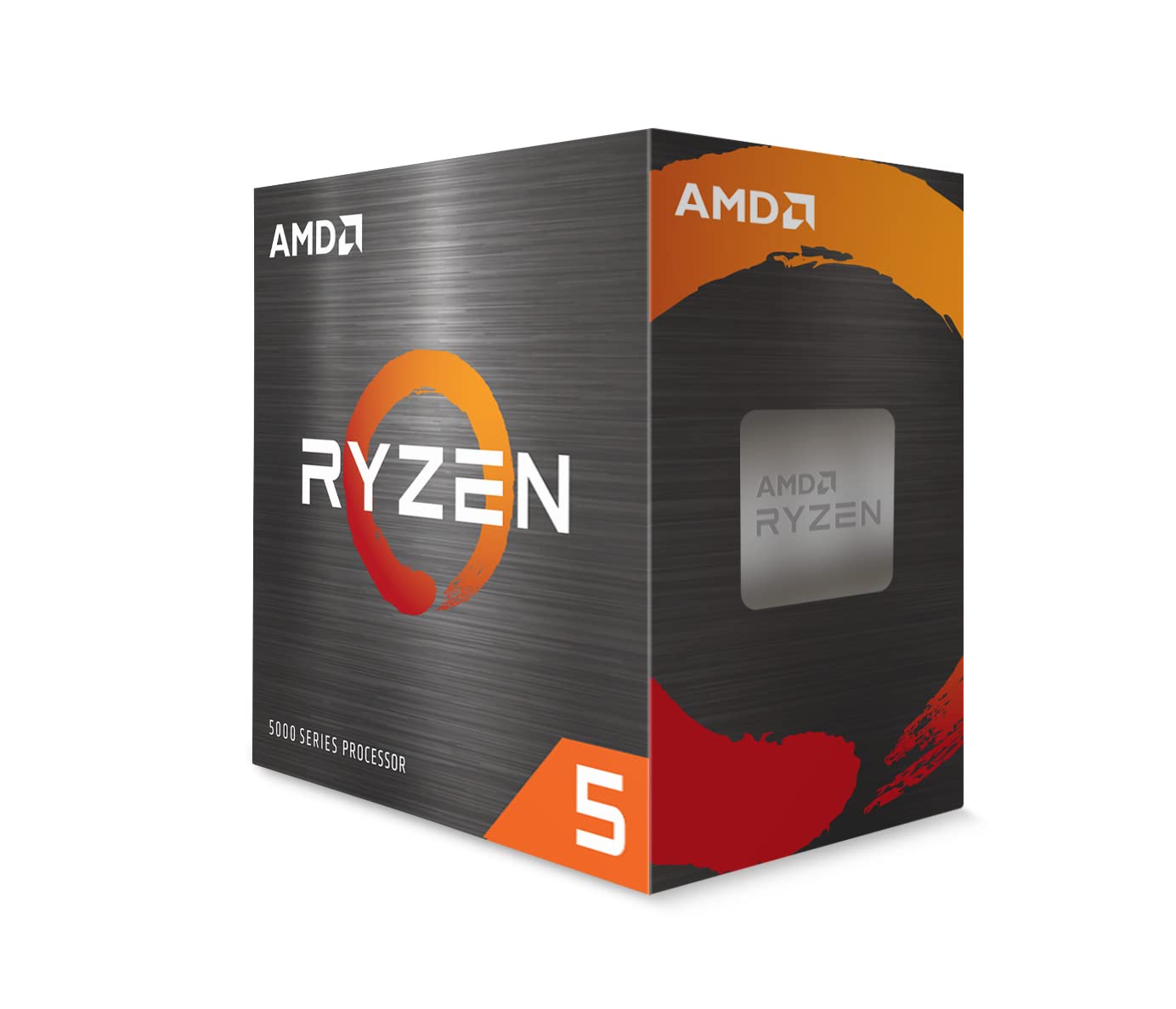

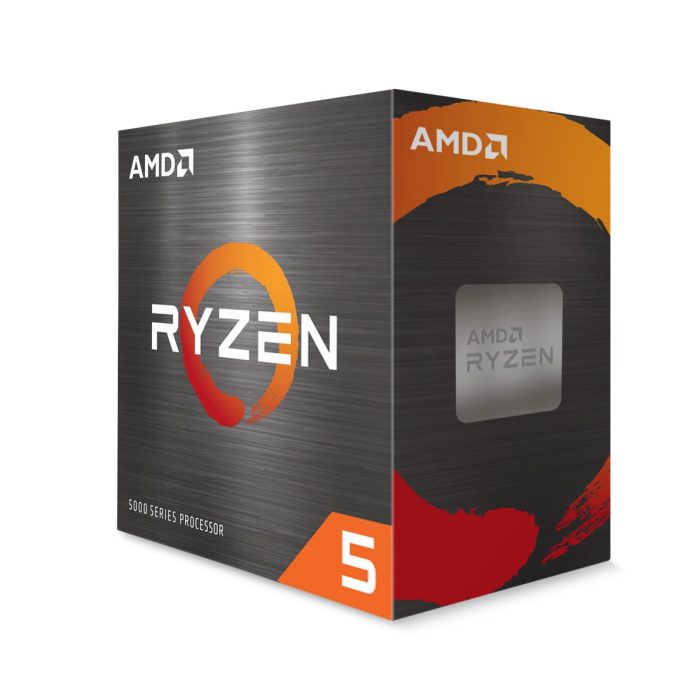

AMD Ryzen5 5500 Processor

Name

• AMD Ryzen™ 5 5500

Family

• Ryzen

Series

• Ryzen 5000 Series

Form Factor

• Desktops , Boxed Processor

Market Segment

• Mainstream Desktop

Regional Availability

• Global , China , NA , EMEA , APJ , LATAM

Former Codename

• Cezanne

Processor Architecture

• Zen 3

# of CPU Cores

• 6

Multithreading (SMT)

• Yes

# of Threads

• 12

Max. Boost Clock

• Up to 4.2 GHz

Base Clock

• 6 GHz

L1 Cache

• 384 KB

L2 Cache

• 3 MB

L3 Cache

• 16 MB

Default TDP

• 65W

Processor Technology for CPU Cores

• TSMC 7nm FinFET

CPU Compute Die (CCD) Size

• 180mm²

Package Die Count

• 1

Unlocked for Overclocking

• Yes

CPU Socket

• AM4

Supporting Chipsets

• X570 , X470 , X370 , B550 , B450 , B350 , A520

CPU Boost Technology

• Precision Boost 2

Instruction Set

• x86-64

Supported Extensions

• AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)

• AMD Wraith Stealth

Max. Operating Temperature (Tjmax)

• 90°C

Launch Date

• 04/04/2022

*OS Support

• Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 4 (40Gbps)

• 0

Native USB 3.2 Gen 2 (10Gbps)

• 4

Native USB 3.2 Gen 1 (5Gbps)

• 0

Native USB 2.0 (480Mbps)

• 0

Native SATA Ports

• 2

PCI Express® Version

• PCIe® 3.0

Native PCIe® Lanes (Total/Usable)

• 24 , 20

Additional Usable PCIe Lanes from Motherboard

X570

• 16x Gen 3

X470

• 2x Gen 3, 8x Gen 2

NVMe Support

• Boot , RAID0 , RAID1 , RAID10

System Memory Type

• DDR4

Memory Channels

• 2

Max. Memory

• 128 GB

System Memory Subtype

• UDIMM

System Memory Specification

• Up to 3200 MT/s

Max Memory Speed

2x1R

• DDR4-3200

2x2R

• DDR4-3200

4x1R

• DDR4-2933

4x2R

• DDR4-2667

ECC Support

• No

Graphics Capabilities

Graphics Model

• Discrete Graphics Card Required

Product IDs

Product ID Boxed

• 100-100000457BOX

Product ID Tray

• 100-000000457

Key Features

 Supported Technologies

• AMD StoreMI Technology , AMD Ryzen™ VR-Ready Premium
